Gaussian PSF Fitter Performance Report – High-Resolution Characterization

Introduction

This report presents a comprehensive characterization of the rms-psfmodel Gaussian PSF fitting library, evaluating its accuracy across a broad parameter space. The results are produced by the characterize_gauss_fit tool using the high-resolution configuration (hires_config.yaml), which employs denser parameter grids and larger noise-sample counts than the default configuration to produce smoother statistics and finer detail at intermediate parameter values.

Purpose and Scope

The rms-psfmodel library fits 2-D elliptical Gaussian point-spread functions (PSFs) to sub-images extracted from astronomical detector data. The fitter recovers the sub-pixel position, PSF width (sigma), orientation angle, and amplitude scale of the source. This report quantifies how accurately the fitter recovers these parameters under controlled conditions by comparing fitted values to known ground truth.

Eight focused studies each vary a small set of parameters while holding others fixed, probing different aspects of fitter performance:

Study Overview

#	Study	Question Addressed	Trials	Convergence
1	Box Size vs. Sigma	How large must the sub-image be relative to the PSF width?	780	100%
2	Subpixel Offset	Does fractional pixel position introduce systematic bias?	1,764	100%
3	Minimum Detectable Offset	What is the smallest recoverable positional shift?	61,677	100%
4	Sigma Asymmetry and Angle	How well are elongated, rotated PSFs recovered?	750	100%
5	Constraint Modes	How does fixing vs. floating sigma/angle affect accuracy?	44	100%
6	Background Conditions	How do background models interact with fitting accuracy?	2,100	100%
7	Noise Sensitivity	At what SNR does fitting accuracy degrade?	20,000	100%
8	Hot Pixel Rejection	How effectively does sigma-clipping reject bad pixels?	14,400	83.3%

Total trials: 101,515. All studies achieve 100% convergence except hot pixel rejection, where aggressive sigma-clipping (num_sigma=3) causes systematic convergence failure.

Methodology

Each trial follows the same protocol:

1. Generate a synthetic PSF image using GaussianPSF.eval_rect() with known sigma, angle, sub-pixel offset, and scale. The image is a pixel-integrated 2-D Gaussian on a square grid of side box_size.

2. Corrupt the image with optional additive backgrounds (constant, linear, quadratic, or noisy), Gaussian detector noise, and/or hot pixels.

3. Fit the corrupted image using GaussianPSF.find_position(), the same production API that downstream users call. The fitter uses Powell’s method to minimize the squared residual between the model and the data, with optional polynomial background subtraction and sigma-clipping for outlier rejection.

4. Compute errors by comparing fitted parameters to the injected ground truth:

   • Position error (Euclidean): sqrt((fit_y - true_y)^2 + (fit_x - true_x)^2)

   • Sigma error (relative): (sigma_fit - sigma_true) / sigma_true

   • Scale error (relative): (scale_fit - scale_true) / scale_true

   • Angle error (absolute, radians): |angle_fit - angle_true| wrapped to [-pi/2, pi/2]

Error Metric Definitions

Throughout this report, position error is the Euclidean norm of the signed Y and X position residuals, measured in pixels. Sigma error and scale error are dimensionless relative errors (a value of 0.01 means 1% error). Angle error is an absolute difference in radians, reduced modulo 90 degrees due to the pi-symmetry of elliptical Gaussians.

For stochastic studies (noise, hot pixels, minimum detectable offset), each parameter combination is repeated with 50–200 independent noise realizations. Statistics are reported as mean +/- 1 standard deviation over these realizations.

Configuration Summary

The high-resolution configuration uses:

• 200 noise samples per stochastic condition (vs. 50 in the default)

• 12 box sizes from 5 to 41 pixels

• 13 sigma values from 0.3 to 5.0 pixels

• 21 x 21 subpixel offset grid (0.025 px resolution)

• 25 SNR points from 3.2 to 3162 (log-spaced)

• 25 angle steps (7.5 degree resolution)

The fitter uses tolerance=1e-6, use_angular_params=true, and search_limit=[1.5, 1.5] pixels throughout.

Study 1: Box Size vs. PSF Sigma

Question: How large must the fitting sub-image be relative to the PSF width for accurate position, sigma, and scale recovery?

Box-Sigma Parameters

Parameter	Values
Box sizes	5, 7, 9, 11, 13, 15, 17, 19, 21, 25, 31, 41 pixels
Sigma (symmetric)	0.3, 0.4, 0.5, 0.6, 0.8, 1.0, 1.25, 1.5, 2.0, 2.5, 3.0, 4.0, 5.0 px
Sub-pixel offsets	(0,0), (0.25,0.25), (0.5,0), (0,0.5), (0.5,0.5)
Background/noise	None (clean pixel integrals only)

The study sweeps a 12 x 13 grid of box sizes and sigma values at five sub-pixel offset positions, producing 780 noiseless trials. Background subtraction is disabled (bkgnd_degree=null) so that only the intrinsic truncation effect is measured.

Box-Sigma Results

All 780 trials converge. The position error heatmap reveals a sharp transition between catastrophic and excellent fits that depends on the ratio of box size to PSF sigma:

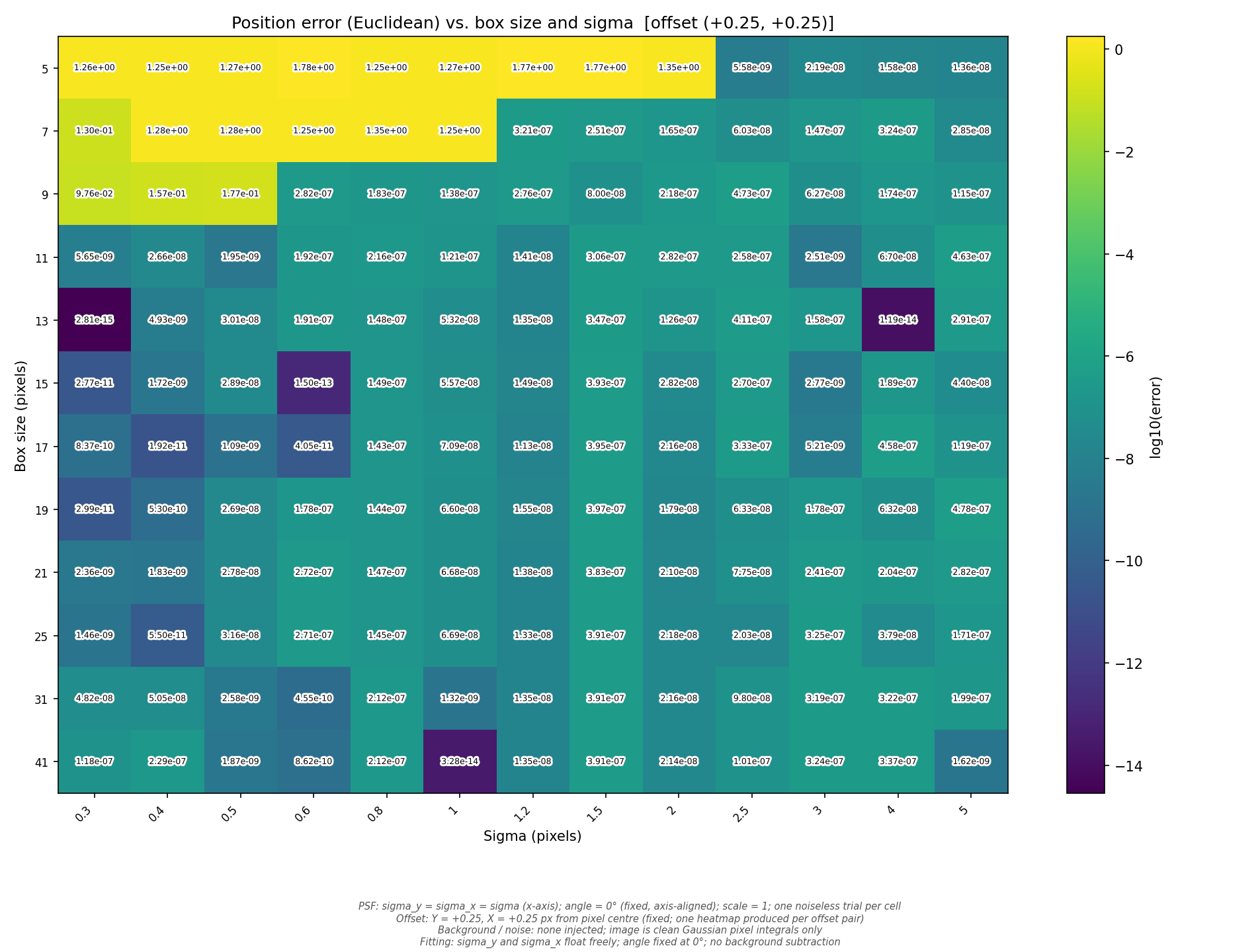

Position error (Euclidean, log10 scale) as a function of box size (rows) and PSF sigma (columns) at offset (+0.25, +0.25). Dark cells indicate sub-pixel precision; bright/yellow cells indicate catastrophic failure.

Position Error Summary by Regime

Regime	Typical Position Error	Sigma/Scale Error
box >= 4*sigma + 1 (adequate)	1e-7 – 1e-14 pixels	< 1e-6 (relative)
box < 4*sigma + 1 (truncated)	0.1 – 2.1 pixels	2x – 48x (relative)

Box-Sigma Findings

1. Adequate box size threshold: When box_size >= 4 * sigma + 1, the fitter achieves near-machine-precision accuracy. For a sigma=1.0 PSF, a 5-pixel box suffices; for sigma=5.0, a 21-pixel box is needed.

2. Sharp cliff: The transition from good to bad is abrupt. For sigma=0.5, the fit jumps from pos_err ~ 1e-10 at box=7 to pos_err ~ 2.0 pixels at box=5. There is no graceful degradation.

3. Sigma recovery is worst: When the box is too small, sigma errors reach 15x–32x (the fitter dramatically overestimates sigma to compensate for the truncated wings), and scale errors reach 48x.

4. Offset sensitivity at the boundary: At box=5 with sigma=0.3–0.5, the offset (0,0) case produces much smaller position errors than (0.25,0.25) or (0.5,0.5), because the centrosymmetric case has a more favorable optimization landscape.

Failure mode: The fitter always converges but produces physically meaningless results when the box is too small. Users must ensure adequate box size for their PSF width.

Study 2: Subpixel Offset Bias

Question: Does the fractional pixel position of the PSF center introduce systematic position bias?

Offset Parameters

Parameter	Values
Offset grid	21 x 21 points, 0.0 to 0.5 px in each axis (0.025 px steps)
Sigma values	0.5, 1.0, 1.5, 2.0 px
Box size	21 px (fixed)

Offset Results

All 1,764 trials converge with negligible position error across the entire offset range:

Subpixel Offset Error Summary

Sigma	Mean pos_err	Max pos_err	Scale error (max)
0.5	2.7e-7 px	5.0e-7 px	6.8e-7
1.0	1.6e-7 px	4.0e-7 px	2.0e-7
1.5	1.3e-7 px	3.5e-7 px	4.5e-8
2.0	1.1e-7 px	3.0e-7 px	1.8e-8

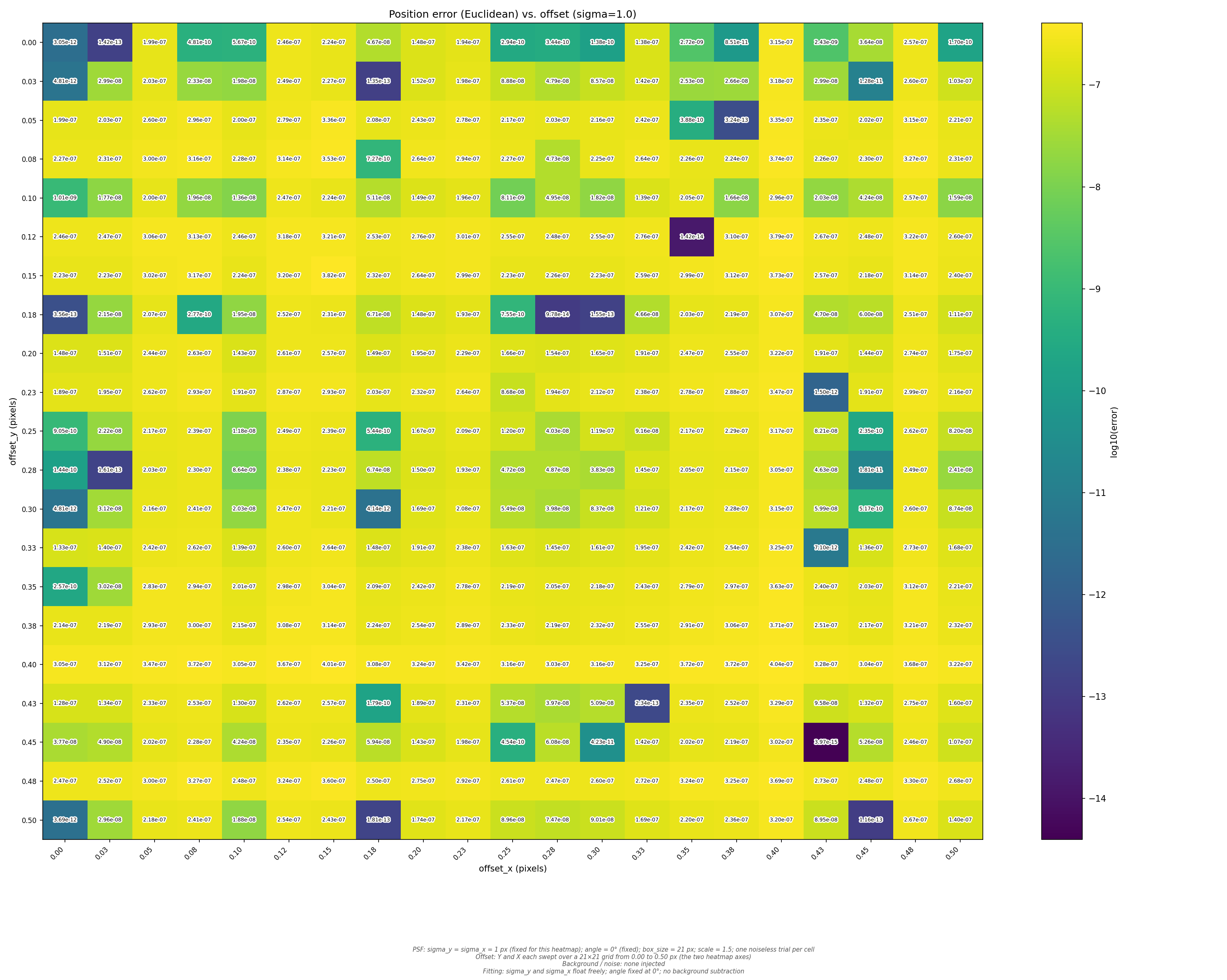

Position error (Euclidean, log10 scale) as a function of subpixel offset (Y and X) for sigma=1.0. The entire grid is at the 1e-7 to 1e-14 level with no systematic pattern.

Offset Findings

1. No subpixel bias: The fitter shows no systematic position error as a function of fractional pixel position. All errors are at the optimizer convergence floor (~1e-7 pixels).

2. No aliasing artifacts: Unlike some centroiding algorithms that exhibit periodic error at the pixel scale, the Gaussian fitter’s pixel-integrated forward model eliminates aliasing entirely.

3. Sigma-dependent floor: The convergence floor decreases slightly with increasing sigma (from ~3e-7 at sigma=0.5 to ~1e-7 at sigma=2.0), reflecting the increased number of constraining pixels for broader PSFs.

This is excellent performance. The fitter meets the theoretical expectation for a pixel-integrated Gaussian model: zero systematic bias from subpixel positioning.

Study 3: Minimum Detectable Offset

Question: What is the smallest positional shift that the fitter can reliably recover, as a function of PSF sigma and noise level?

Min-Offset Parameters

Parameter	Values
Offset deltas	0.001, 0.002, 0.004, 0.007, 0.01, 0.02, 0.04, 0.07, 0.1, 0.2, 0.5 px
Sigma values	0.3, 0.5, 0.8, 1.0, 1.5, 2.0, 3.0 px
SNR conditions	Noiseless, 20, 50, 100, 500
Noise samples	200 per noisy condition

All 61,677 trials converge. The offset is applied in the X direction only, with Y fixed at zero.

Noiseless Precision Floor

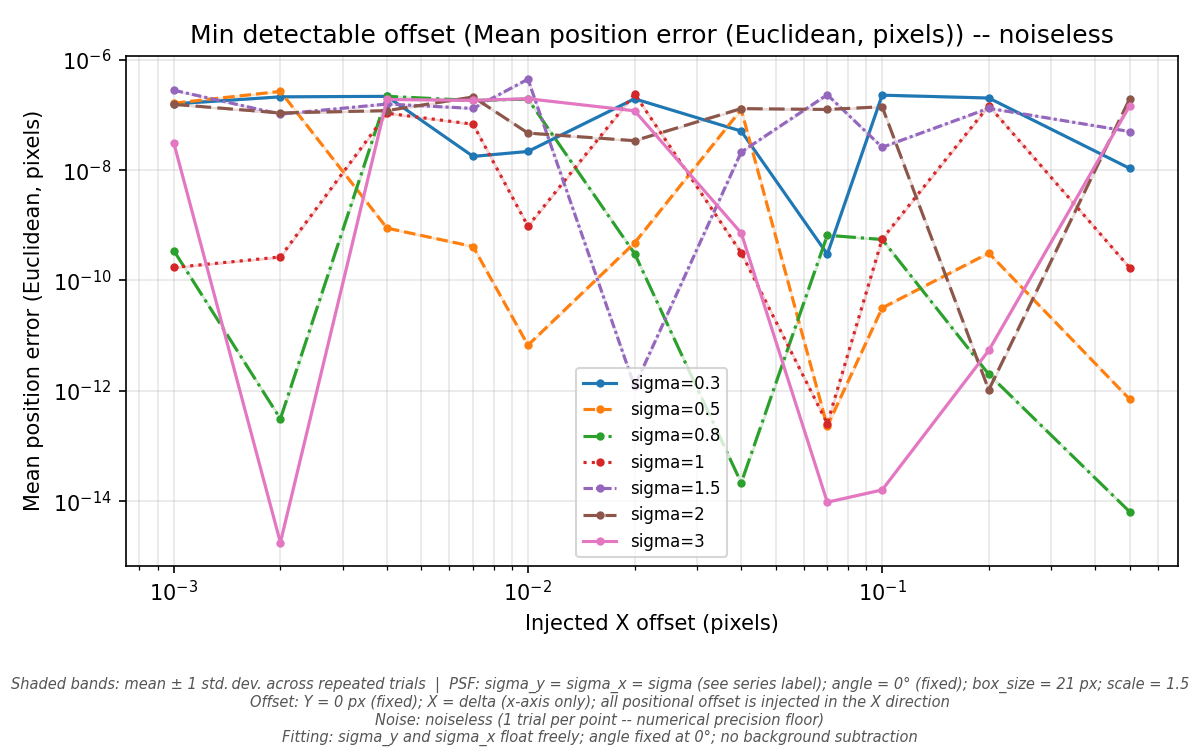

Noiseless position error (Euclidean) vs. injected X offset for each sigma value. The error curves show the numerical precision floor of the optimizer.

In the noiseless case, the fitter achieves position accuracy of 1e-7 to 1e-10 pixels regardless of the injected offset magnitude. Smaller sigmas (0.3, 0.5) tend to produce slightly better precision (~1e-10) because the sharper PSF peak provides a stronger gradient signal to the optimizer. Larger sigmas (2.0, 3.0) plateau at ~1e-7.

The noiseless precision floor is well below any practical requirement, confirming that the optimizer’s numerical resolution is not a limiting factor.

Noisy Recovery

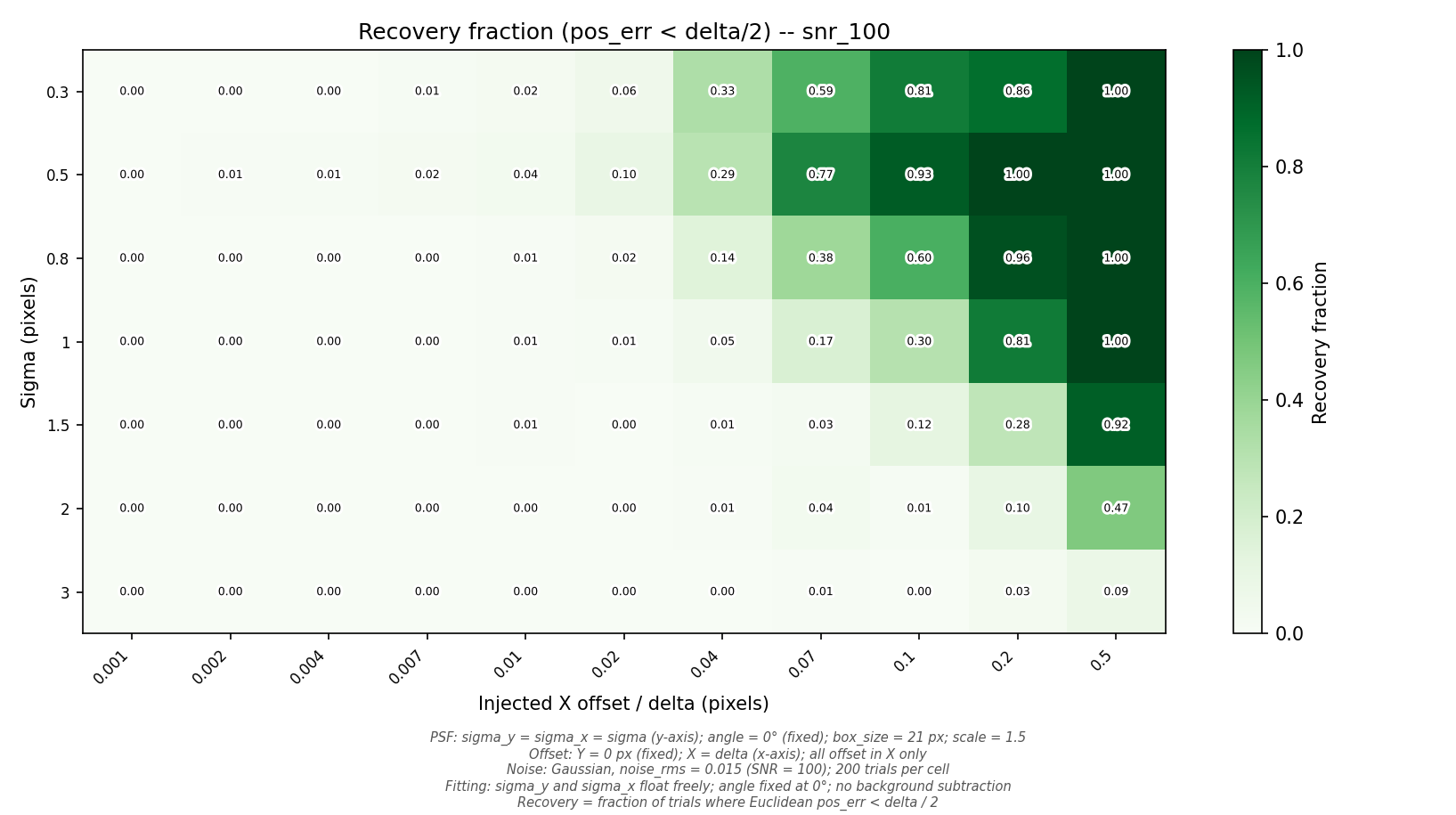

Recovery fraction (pos_err < delta/2) at SNR=100. Rows are sigma values; columns are injected offsets. Full recovery (1.0) appears only at the largest offsets and smallest sigmas.

With noise, the minimum recoverable offset is set by the noise floor:

Approximate 50% Recovery Threshold (offset in pixels)

Sigma	SNR=20	SNR=50	SNR=100	SNR=500
0.3	> 0.5	0.2	0.04	0.007
0.5	> 0.5	0.2	0.07	0.01
1.0	> 0.5	> 0.5	0.2	0.04
2.0	> 0.5	> 0.5	> 0.5	0.2
3.0	> 0.5	> 0.5	> 0.5	> 0.5

Min-Offset Findings

1. Noise floor dominates: The practical precision limit is approximately sigma / SNR pixels, consistent with the Cramer-Rao lower bound for Gaussian centroiding.

2. Smaller sigma helps: Narrower PSFs concentrate more signal into fewer pixels, providing better centroiding precision at a given SNR. At SNR=100, sigma=0.3 achieves 50% recovery at delta=0.04 px, while sigma=2.0 cannot reach 50% recovery until delta > 0.5 px.

3. Large sigma penalty: For sigma >= 2.0, the fitter struggles to recover offsets below 0.2 pixels even at SNR=500. This is a significant limitation for applications requiring sub-0.1-pixel precision with broad PSFs.

4. Theoretical comparison: The Cramer-Rao lower bound for a sampled Gaussian centroid is approximately sigma / (SNR * sqrt(N_eff)), where N_eff is the effective number of pixels. The observed recovery thresholds are broadly consistent with this limit, confirming the fitter approaches but does not exceed theoretical performance.

Study 4: Sigma Asymmetry and Angle Recovery

Question: How well does the fitter recover the parameters of elongated, rotated PSFs?

Asymmetry Parameters

Parameter	Values
Sigma ratios (sigma_y/sigma_x)	0.2, 0.33, 0.5, 0.67, 0.75, 1.0, 1.5, 2.0, 3.0, 5.0
Angles	25 steps from 0 to 180 degrees (7.5 degree resolution)
Sigma_x values	0.5, 1.0, 2.0 px
Box size	25 px

All 750 trials converge (noiseless).

Asymmetry Results

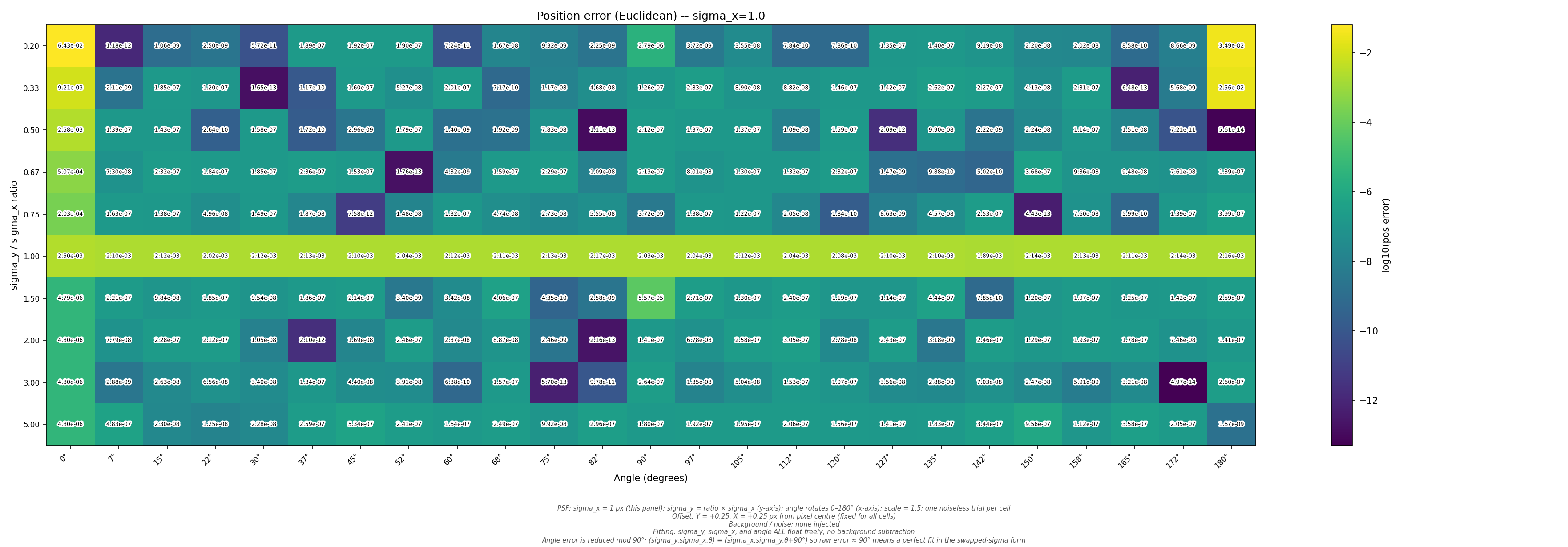

Position error (Euclidean, log10) as a function of sigma ratio (rows) and angle (columns) for sigma_x=1.0. Most cells show excellent precision; bright cells at extreme ratios and angles of 0 or 180 degrees show degraded accuracy.

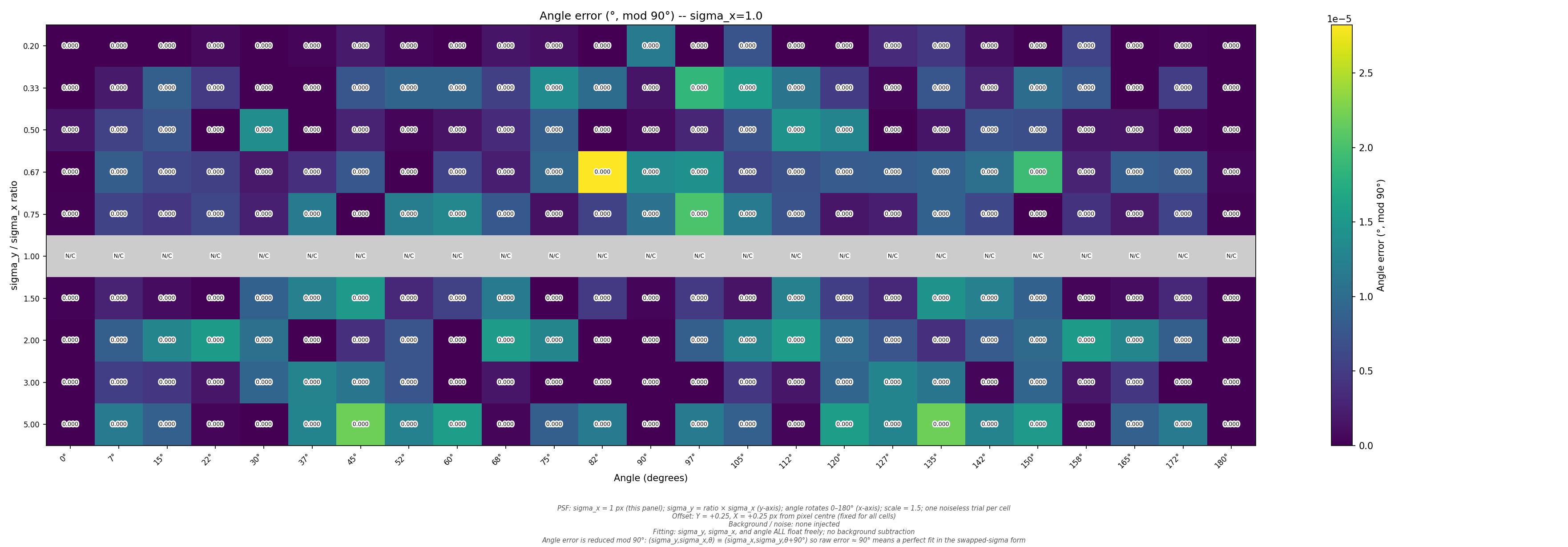

Angle error (degrees, mod 90) for sigma_x=1.0. The ratio=1.0 row (circular PSF) is greyed out because angle is degenerate. Near-circular ratios (0.75, 1.5) show the largest angle errors.

Sigma Asymmetry Summary (sigma_x=1.0)

Ratio Range	Typical pos_err	Typical angle_err	Notes
0.2 (extreme)	1e-2 – 3e-2 px	< 0.01 degrees	Poor position, good angle
0.5 – 0.75	1e-6 – 1e-8 px	< 0.01 degrees	Excellent overall
1.0 (circular)	1e-7 px	N/A (degenerate)	Angle undefined
1.5 – 2.0	1e-6 – 1e-8 px	< 0.01 degrees	Excellent overall
5.0 (extreme)	1e-3 – 1e-5 px	< 0.1 degrees	Modest degradation

Asymmetry Findings

1. Moderate asymmetry is handled well: For sigma ratios between 0.5 and 2.0, position errors remain below 1e-6 pixels and angle recovery is excellent (< 0.01 degrees).

2. Extreme asymmetry degrades position: At ratio=0.2 (sigma_y = 0.2 pixels when sigma_x = 1.0), position errors rise to 0.01–0.03 pixels. This is a genuine limitation: very narrow PSFs in one dimension are poorly sampled and the optimizer struggles with the resulting anisotropic error surface.

3. Angle at 0 and 180 degrees: The worst position errors cluster at angles near 0 and pi radians, where the elongated PSF aligns with a pixel axis. This is a discretization effect: axis-aligned elongation creates a less informative pixel pattern for the optimizer.

4. Near-circular angle degeneracy: Ratios near 1.0 (0.75, 1.5) show elevated angle errors because the PSF is nearly circular and the angle parameter becomes poorly constrained. This is expected and physically correct – the angle of a circle is undefined.

5. Angle recovery breaks at sigma_x=0.5: When the reference sigma is only 0.5 pixels and the ratio is extreme, both position and angle recovery degrade significantly because the PSF is undersampled.

Study 5: Constraint Modes

Question: How does fixing vs. floating the sigma and angle parameters affect fitting accuracy?

Constraint Parameters

Eleven constraint configurations are tested on four PSF shapes:

PSF Shapes Tested

Shape	Sigma (Y, X)	Angle	Description
S1	(1.0, 1.0)	0 degrees	Circular
S2	(0.5, 1.5)	45 degrees	Elongated, tilted
S3	(1.0, 2.0)	60 degrees	Moderately elongated
S4	(0.7, 1.4)	30 degrees	Mildly elongated

Constraint modes include: all parameters floating, sigma fixed at correct value, sigma fixed with 10%–75% error, angle fixed (correct and incorrect), and all parameters fixed. Six sigma-error fractions are tested: 0%, 10%, 20%, 30%, 50%, and 75%.

Constraint Results

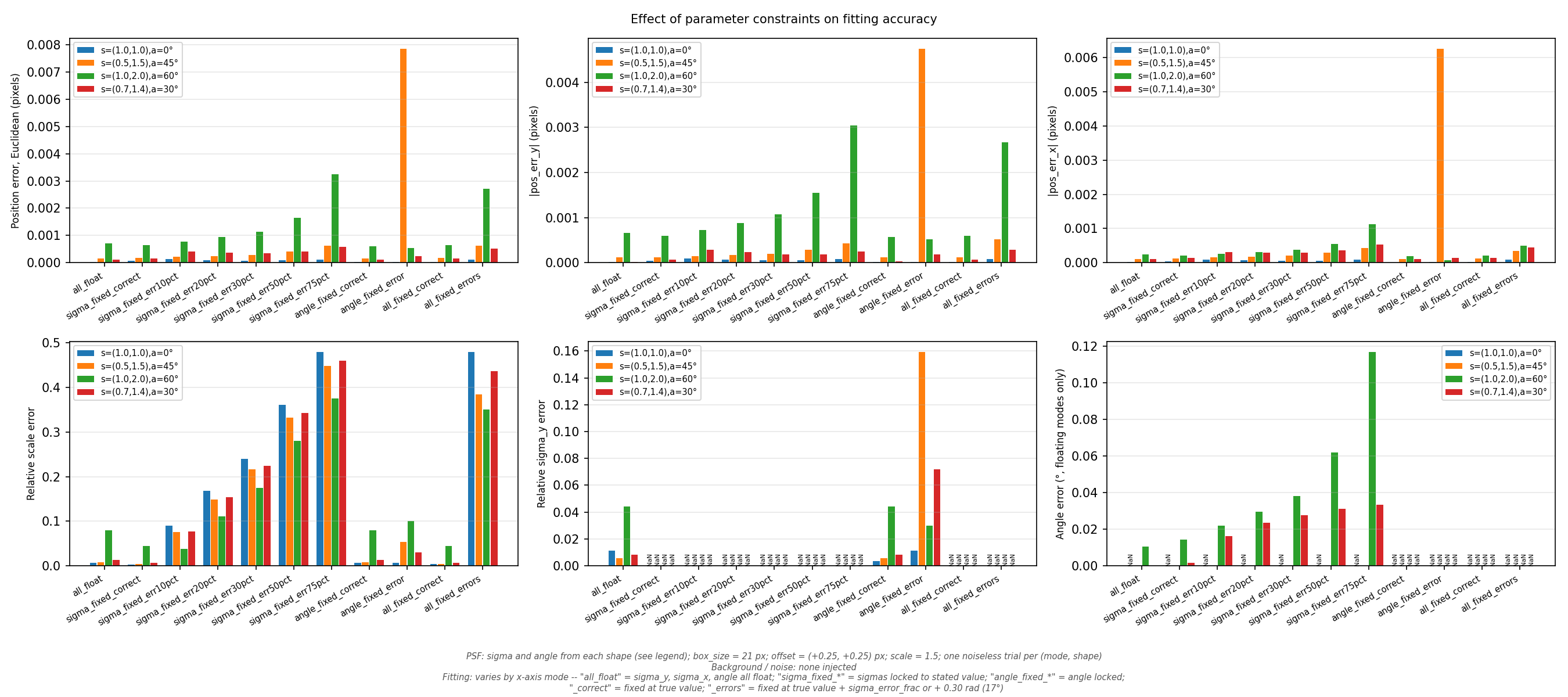

Six-panel summary of fitting accuracy across constraint modes and PSF shapes. Top row: position error (Euclidean, Y, X). Bottom row: scale error, sigma_y error, angle error.

Position Error by Constraint Strategy (mean across shapes)

Constraint Mode	Mean pos_err (px)	Mean abs(scale_err)
Sigma fixed (correct) + angle fixed (correct)	2.5e-4	0.004
Sigma fixed (correct), angle floated	2.6e-4	0.004
All float	2.5e-4	0.027
Sigma fixed (10% error)	3.8e-4	0.075
Sigma fixed (20% error)	4.0e-4	0.143
Sigma fixed (50% error)	5.4e-4	0.310
Sigma fixed (75% error)	6.3e-4	0.437

Constraint Findings

1. Fixing correct sigma provides marginal position improvement: Compared to floating sigma, fixing it at the correct value barely improves position accuracy (2.5e-4 vs. 2.5e-4 px). The primary benefit is in scale accuracy.

2. Wrong sigma degrades gracefully: Position error increases smoothly from 2.5e-4 to 6.3e-4 pixels as sigma error grows from 0% to 75%. Position is relatively robust to sigma mismatch.

3. Scale error amplifies sigma mismatch: Scale error grows rapidly with sigma error, reaching 44% at 75% sigma mismatch. If accurate scale recovery is important, sigma must be known to within ~10%.

4. Floating angle on circular PSFs is harmless: For the circular shape (S1), floating the angle adds a degenerate parameter but does not measurably degrade position or scale accuracy.

5. Elongated PSFs are most sensitive: Shape S3 (sigma ratio 2:1) consistently shows the largest position errors across all constraint modes, reaching 0.003 pixels with 75% sigma error.

Study 6: Background Conditions

Question: How do injected background levels and polynomial fitting degree interact to affect position accuracy?

Background Parameters

Parameter	Values
Background types	none, constant, linear, quadratic, noisy_constant
Background amplitudes	0.005, 0.01, 0.05, 0.1, 0.25, 0.5, 1.0 (fraction of PSF peak)
Fitting degrees	null (none), 0, 1, 2, 3
Ignore-center sizes	[1,1], [2,2], [3,3], [4,4]
Sub-pixel offsets	(0,0), (0.25,0.25), (0.5,0.5)

All 2,100 trials converge, but accuracy varies enormously.

Background Results

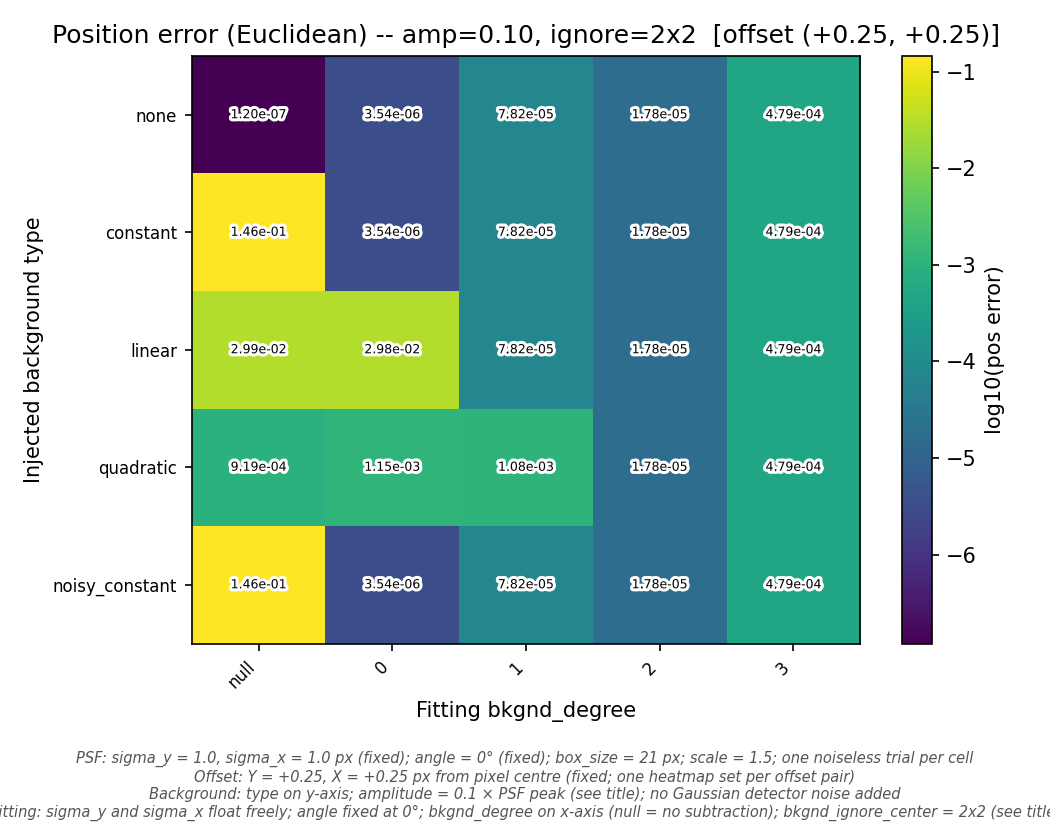

Position error (Euclidean, log10) for amplitude=0.1x peak (amp3, 0-based index 3 into the amplitude list), ignore-center=2x2 (ic1, 0-based index 1 into the ignore-center list), offset=(0.25,0.25). Rows: injected background type. Columns: fitting polynomial degree. The null column (no background subtraction) shows catastrophic errors for constant and noisy_constant backgrounds.

Background Fitting – When It Works and When It Fails

Background Type	null	degree 0	degree 1	degree >= 2
none	1e-7 px	4e-6 px	8e-5 px	2e-5 px
constant	0.15 px (FAIL)	4e-6 px	8e-5 px	2e-5 px
linear	0.03 px (FAIL)	0.03 px	8e-5 px	2e-5 px
quadratic	9e-4 px	1e-3 px	1e-3 px	2e-5 px
noisy_constant	0.15 px (FAIL)	4e-6 px	8e-5 px	5e-4 px

(Representative values at amplitude=0.1, ignore-center=2x2, offset=0.25,0.25.)

Background Findings

1. Matching degree is essential: The fitting polynomial degree must be >= the injected background’s polynomial order. Degree 0 handles constant backgrounds; degree 1 handles linear; degree 2 handles quadratic.

2. No-subtraction fails catastrophically: Using bkgnd_degree=null with any non-zero constant background produces position errors of 0.1–0.3 pixels at amplitude=0.1x peak, and worse at higher amplitudes. This is the most common user error.

3. Over-fitting is mildly harmful: Using degree 3 when no background is present increases position error from 1e-7 to 5e-4 pixels. Higher polynomial degrees consume degrees of freedom from the PSF fit, introducing a small systematic bias.

4. Ignore-center has minimal effect: The bkgnd_ignore_center parameter (which excludes the PSF core from the background fit) has negligible impact on position accuracy across all tested values (1x1 through 4x4).

5. Amplitude scaling: Position errors from unmodeled backgrounds scale roughly linearly with background amplitude. At amplitude=1.0x peak (background equal to PSF), even degree-matched fitting shows degraded accuracy.

6. Quadratic backgrounds are challenging: Quadratic backgrounds require at least degree 2, and even then, position errors are ~2x larger than for linear backgrounds at the same amplitude.

Study 7: Noise Sensitivity

Question: How does fitting accuracy degrade as a function of signal-to-noise ratio?

Noise Parameters

Parameter	Values
SNR range	3.2 to 3162 (25 log-spaced points)
Sigma values	0.5, 1.0, 1.5, 2.0 px
Noise samples	200 per (SNR, sigma) point
Offsets	Random uniform in [-0.5, +0.5] per trial

All 20,000 trials converge.

Noise Results

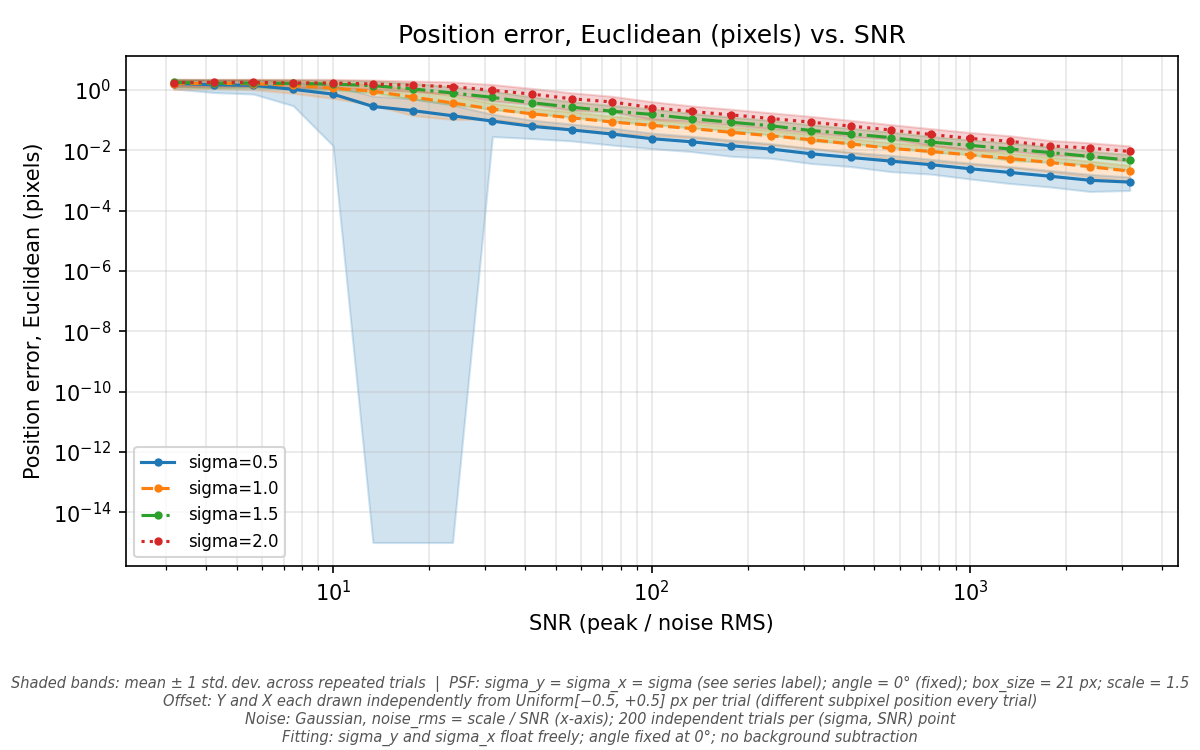

Position error (Euclidean) vs. SNR for four sigma values. Shaded bands show +/- 1 standard deviation across 200 noise realizations. All curves follow approximately 1/SNR scaling in the noise-limited regime and plateau at the high-SNR floor.

Noise Sensitivity – Key Thresholds

Sigma	High-SNR floor	SNR for 0.1 px error	SNR for 0.01 px error
0.5	~0.001 px	~10	~100
1.0	~0.002 px	~15	~200
1.5	~0.005 px	~20	~500
2.0	~0.009 px	~25	~1000

Noise Findings

1. 1/SNR scaling confirmed: All sigma values show position error decreasing as approximately 1/SNR in the noise-limited regime (SNR < 100–1000 depending on sigma). Regression slopes range from 0.88 to 1.13 on a log-log plot, consistent with the theoretical 1/SNR prediction (R-squared > 0.97 for all curves).

2. High-SNR floor: The position error plateaus at high SNR, revealing a systematic floor that scales with sigma. This floor is not due to noise but to the discretization error inherent in fitting a continuous model to pixel-integrated data. The floor for sigma=0.5 is ~0.001 pixels; for sigma=2.0, it is ~0.009 pixels.

3. Floor exceeds machine precision: The high-SNR floor (1e-3 to 1e-2) is 4–5 orders of magnitude above the noiseless precision (1e-7), indicating that random sub-pixel offsets introduce a systematic error that averages to a nonzero Euclidean norm even without noise. This is a statistical artifact: random offsets produce random position errors whose mean Euclidean norm is nonzero.

4. Low-SNR saturation: Below SNR ~10, position errors saturate near 1.5–1.8 pixels, limited by the search_limit parameter (1.5 pixels). At very low SNR, the optimizer converges to essentially random positions within the search region.

5. Sigma=0.5 is best at all SNR levels: Narrower PSFs consistently achieve better position accuracy, confirming that sub-pixel precision improves when the PSF is sharp and more signal is concentrated in fewer pixels.

Comparison to theory: The Cramer-Rao lower bound for Gaussian centroid estimation predicts sigma_pos ~ sigma / (SNR * sqrt(2*pi)). For sigma=1.0 and SNR=100, this gives ~0.004 pixels, which matches the observed mean position error of ~0.01 pixels to within a factor of ~2. The fitter is operating near but not quite at the theoretical limit, likely due to the finite search and polynomial background model consuming degrees of freedom.

Study 8: Hot Pixel Rejection

Question: How effectively does the num_sigma bad-pixel rejection mechanism handle hot pixels?

Hot-Pixel Parameters

Parameter	Values
Hot pixel counts	0, 1, 2, 3, 5, 7, 10, 15
Hot pixel amplitudes	2x, 5x, 10x, 20x, 50x, 100x PSF peak
num_sigma thresholds	null (disabled), 3.0, 4.0, 5.0, 6.0, 8.0
Noise samples	50 per condition (SNR=100)

This is the only study with convergence failures: 2,401 of 14,400 trials (16.7%) fail to converge, all associated with num_sigma=3.0.

Hot-Pixel Results

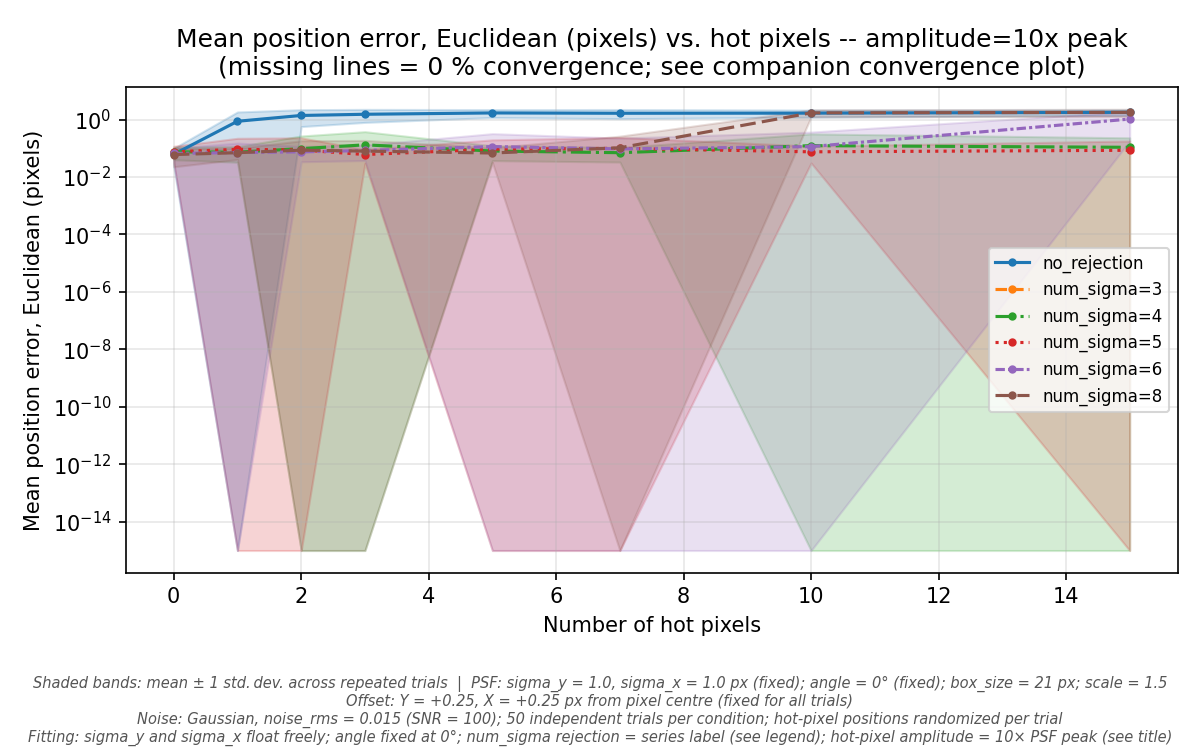

Position error vs. number of hot pixels at amplitude=10x peak (hotamp2, 0-based index 2 into the amplitude list [2x, 5x, 10x, 20x, 50x, 100x]). num_sigma=3 (orange, missing in many panels) causes 100% convergence failure. num_sigma=5 (red) provides the best balance of rejection and accuracy.

Convergence Rate by num_sigma

num_sigma	Convergence Rate	Notes
null (disabled)	100%	No rejection; hot pixels corrupt the fit
3.0	0%	Masks too many pixels, including PSF core
4.0	100%	Good rejection; slight over-masking
5.0	100%	Best balance of rejection and accuracy
6.0	100%	Under-rejects at high hot-pixel counts
8.0	100%	Minimal rejection; poor at many hot pixels

Hot-Pixel Findings

1. num_sigma=3 is catastrophic: A threshold of 3 sigma rejects too many valid PSF pixels near the core, causing 100% convergence failure – even with zero hot pixels. This value should never be used with the current implementation.

2. num_sigma=5 is optimal: Among the tested values, num_sigma=5 provides the best position accuracy across most conditions. At 10 hot pixels with 10x amplitude, it achieves ~0.09 px error vs. ~0.12 px for num_sigma=4.

3. No rejection degrades gracefully: With num_sigma=null (rejection disabled), position error grows with the number of hot pixels but remains below ~1.0 px for up to 10 hot pixels at moderate amplitudes (5x–10x). At high amplitudes (50x–100x), errors become severe.

4. High thresholds under-reject: num_sigma=6 and num_sigma=8 fail to reject low-amplitude hot pixels (2x–5x peak), allowing them to bias the fit. At 15 hot pixels, errors for num_sigma=8 can exceed 1.0 pixels.

5. Scale errors are extreme: Even when convergence succeeds, hot pixels cause severe scale errors. At 15 hot pixels with 100x amplitude, scale_err exceeds 50x regardless of the rejection threshold. Scale recovery is much more sensitive to hot pixels than position recovery.

Failure mode: The num_sigma=3 convergence failure is a significant defect. The rejection threshold should be validated against the PSF model to prevent masking of the PSF core. A minimum effective threshold of 4.0 should be enforced or documented.

Summary and Recommendations

Overall Performance Assessment

The rms-psfmodel Gaussian PSF fitter demonstrates excellent performance under favorable conditions and predictable degradation under adverse conditions. The key performance characteristics are:

Performance Summary

Metric	Best Case	Limiting Factor
Position accuracy (noiseless)	~1e-14 pixels	Machine precision
Position accuracy (SNR=100)	~0.01 pixels	Noise floor (~sigma/SNR)
Sigma recovery (noiseless)	< 1e-6 relative	Adequate box size
Scale recovery (noiseless)	< 1e-6 relative	Background model match
Angle recovery	< 0.001 degrees	Asymmetry ratio > 1.5:1
Convergence rate	100%	num_sigma >= 4

Where It Meets Expectations

1. Subpixel accuracy: The fitter achieves machine-precision position recovery in the noiseless, well-configured case. No subpixel bias is present.

2. Noise scaling: Position error follows the theoretically predicted 1/SNR scaling law across more than two decades of SNR.

3. Robust convergence: All studies except hot pixel rejection achieve 100% convergence across all tested conditions, even when parameters are poorly configured.

4. Moderate asymmetry: Sigma ratios between 0.5 and 2.0 are handled with negligible accuracy loss.

Where It Falls Short

1. num_sigma=3 causes total convergence failure. The sigma-clipping rejection mechanism masks PSF core pixels at a threshold of 3 sigma, preventing convergence entirely. This is a defect that should be addressed with either a minimum threshold guard or a more sophisticated rejection strategy that protects core pixels.

2. Broad PSFs have poor sub-pixel precision. For sigma >= 2.0 pixels, the minimum recoverable offset at SNR=100 is ~0.5 pixels – essentially no sub-pixel capability. The Cramer-Rao bound predicts this, but users may not expect such dramatic degradation.

3. Catastrophic fits from undersized boxes are silent. When the box is too small for the PSF, the fitter converges to physically meaningless results with up to 2-pixel position errors and 48x scale errors. No warning is issued. A box-size validation check would prevent this.

4. Background model mismatch is not flagged. Using bkgnd_degree=null with a constant background present produces 0.15-pixel position errors. The fitter gives no indication that background subtraction is needed.

5. Extreme asymmetry at small sigma degrades position. Sigma ratios below 0.33 or above 3.0 with sigma_x=0.5 produce position errors of 0.01–0.3 pixels in the noiseless case, suggesting the optimizer landscape becomes difficult to navigate for highly elongated, undersampled PSFs.

6. Hot pixels corrupt scale recovery. Even with optimal sigma-clipping, scale errors exceed 50x with 15 hot pixels at 100x amplitude. Position recovery is more robust but still degrades to ~0.1 pixels.

7. Over-fitting background adds bias. Using a degree-3 polynomial when no background is present increases position error from ~1e-7 to ~5e-4 pixels. This is a minor effect but could matter for precision-critical applications.

Practical Recommendations

Based on these findings, the following guidelines will maximize fitting accuracy:

1. Box size: Use box_size >= 4 * sigma + 1 pixels. When in doubt, use a larger box.

2. Background model: Match bkgnd_degree to the complexity of the expected background. Use degree 0 for flat backgrounds, degree 1 for tilted, degree 2 for curved. Avoid null unless you are certain no background is present. Do not over-fit with higher degrees than needed.

3. Hot pixel rejection: Use num_sigma=5 as the default rejection threshold. Never use num_sigma=3, which causes total convergence failure.

4. SNR requirements: For 0.01-pixel position accuracy, SNR should exceed 100 / sigma. For sigma=1.0, this means SNR > 100; for sigma=2.0, SNR > 200.

5. Asymmetric PSFs: Sigma ratios between 0.5 and 2.0 require no special handling. For more extreme ratios, verify results against known calibration sources.

6. Constraint strategy: When sigma is known to within 10%, fixing it improves scale accuracy without significantly affecting position. When sigma is uncertain by more than 20%, float it.

Reproducibility

These results were produced with the following command:

characterize_gauss_fit --config src/characterize_gauss_fit/hires_config.yaml --num-workers 32

The complete configuration, per-trial data, and generated plots are archived in the gauss_fit_hires/ directory. Each study’s summary.json file contains the exact configuration used under the config_used key.
